ELECMAN ® 90 Degree Type Zinc Liquid Tight Connector 1-1/4" With Insulated Throat
Applications
ELECMAN® Zinc 90 degree liquid tight connectors with insulated throat are designed to slip onto the conduit quickly and to grip the conduit jacket, speeding up installation while ensuring a strong, liquid-tight seal that decreases the risk of pullouts when 90 degree bends are required. Smooth internal surfaces for easier wire installation around corner angles.
Features
Certifications and Compliances
ELECMAN® Zinc 90 degree liquid tight connectors shall be produced to the following specification:
- UL Listed liquid tight flexible metal conduit fittings are suitable for use in the following hazardous locations under NEC:
- Class I, Division 2;
- Class II, Divisions 1 & 2; and
- Class III, Divisions 1 & 2;
- Suitable for grounding in sizes 3 /8” through 11 /4” under NEC
- UL Standards 514B, 467
- cUL Standard C22.2 No. 18F
- UL File No. E503810
Specification Data

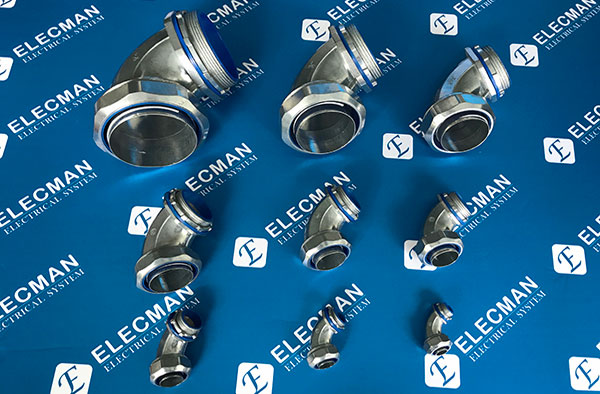

ELECMAN provides full size zinc die cast 90 degree liquid tight connectors from 1/2" to 4".

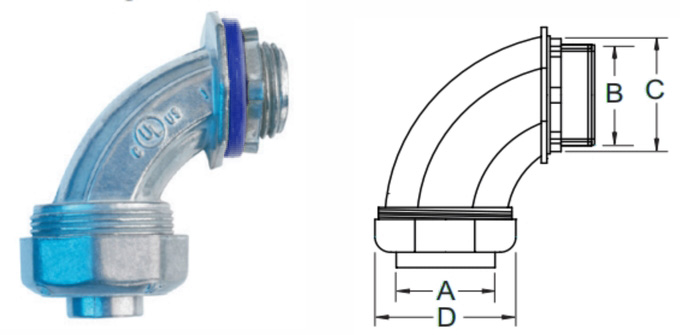

| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | DIM D(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| LTN038 | 3/8" | 0.620 | 0.810 | 0.920 | 1.220 | 50 | 250 | 14.5 |
| LTN050 | 1/2" | 0.620 | 0.910 | 1.020 | 1.220 | 50 | 250 | 15 |
| LTN075 | 3/4" | 0.800 | 1.150 | 1.270 | 1.360 | 40 | 200 | 15 |
| LTN100 | 1" | 1.020 | 1.380 | 1.480 | 1.730 | 20 | 100 | 15 |
| LTN125 | 1-1/4" | 1.360 | 1.770 | 1.930 | 2.110 | | 80 | 21 |
| LTN150 | 1-1/2" | 1.610 | 2.010 | 2.170 | 2.430 | | 50 | 21 |
| LTN200 | 2" | 2.080 | 2.580 | 2.680 | 2.930 | | 25 | 17.5 |
| LTN250 | 2-1/2" | 2.510 | 3.150 | 3.210 | 3.620 | | 15 | 21 |
| LTN300 | 3" | 3.130 | 3.670 | 3.740 | 4.280 | | 10 | 21 |
| LTN350 | 3-1/2" | 3.580 | 4.170 | 4.230 | 4.840 | | 10 | 21 |
| LTN400 | 4" | 4.060 | 4.740 | 4.750 | 5.370 | | 5 | 21 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information

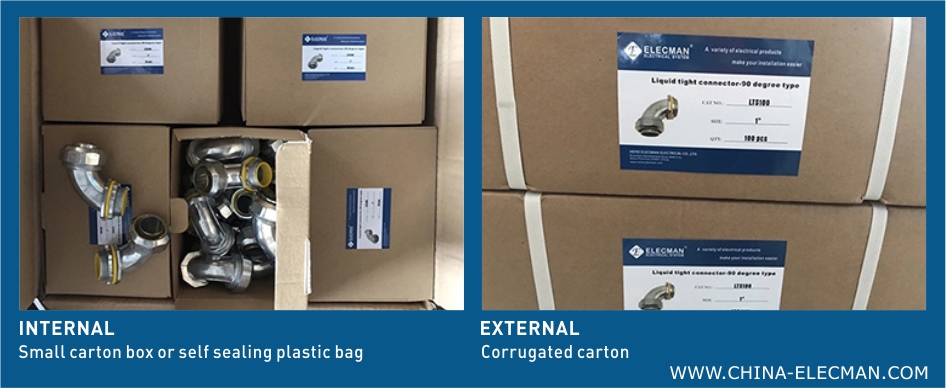

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
